PROTO - circuit simulator

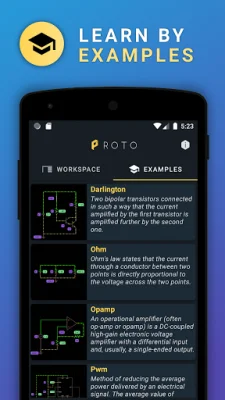

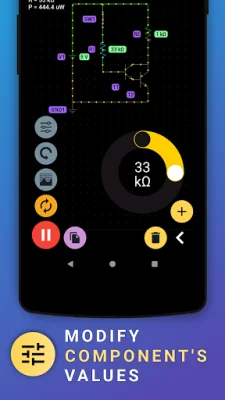

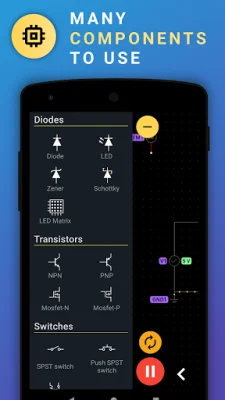

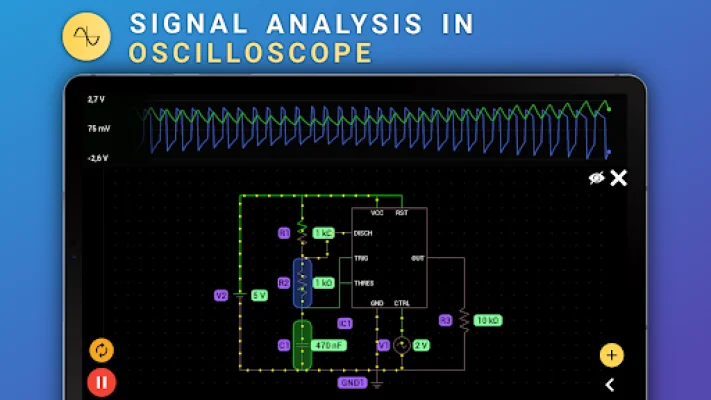

During simulation, our app allows you to monitor various variables such as voltages and currents. You can also use a multichannel oscilloscope to check signals and adjust your circuit in real time. This app is designed to greatly assist with projects involving Raspberry Pi, Arduino, or ESP32. Additionally, it can be used as a logic circuit simulator for digital electronic analysis. If you encounter any issues or have a component request, you can report it or make a request on our Github page. Our app offers a variety of features, including animations of voltage values and current flows, the ability to adjust circuit parameters, and a four-channel oscilloscope. You can control the simulation with a single play/pause button and even copy electronic components. Our app also provides examples to help you learn about electronic circuits. You can share your circuit with friends and choose from different themes such as Dark, Light, Ocean, and Solarized. You can also export your circuit as a PNG, JPG, or PDF, as well as export your workspace. We also offer video tutorials about electronics, with plans to add Arduino support in the future. Our app includes a wide range of components, such as voltage and current sources, resistors, capacitors, inductors, diodes, transistors, switches, and more. We also offer an Analog Pack, Digital Pack, Misc Pack, and JavaScrip Pack, each with their own unique components. Additionally, we have packs specifically for 7400 TTL and 4000 CMOS components. For those working with sensors, our app offers a Sensors Pack with various sensors for pressure, gyroscope, light, magnetic field, proximity, temperature, and humidity. We strive to be original and SEO-oriented in our component descriptions. With our app, you can not only simulate and analyze electronic circuits, but also learn and experiment with different components and their functions.
